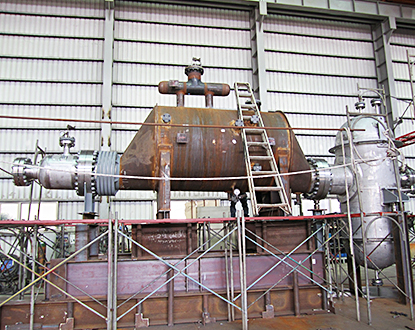

E3-1354 HYDROGEN RECOVERY CONDENSER
SPECIFICATION
- Size:
1650 ID mm x 4628 L mm - Material:
- Design Pressure:
- Design Temperature:
- Build Date: 2014.04
1200 ID mm x 2100 L mm
Shell Side: SA-516M Gr.70N/SA-240M Gr.TP316
Tube Side: SA-240M Gr.TP304L
Tubesheet: SA-965M Gr.F304
Tubes: SB-677 UNS NO8904
Shell Side: 5.61/FV kg/cm2G
Tube Side: 61.18/FV kg/cm2G
Shell Side: 185℃
Tube Side: 350℃
